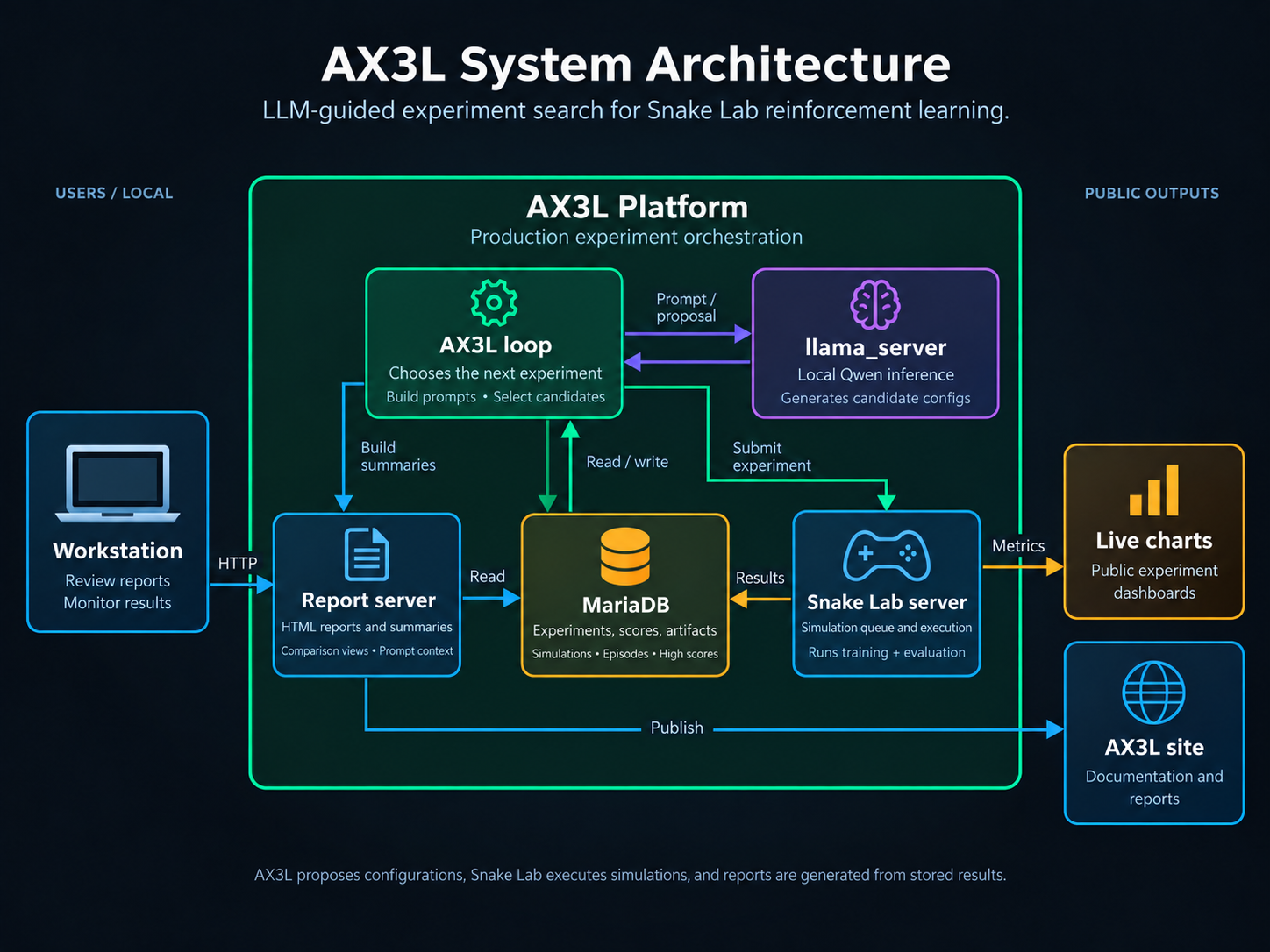

Ax3l Architecture

The project runs on Debian Linux and uses systemd to run the components as services.

Ax3l Server

The Ax3l Server is the heart of the system. It is implemented as a systemd service. See the runtime behaviour page for more information. Key events are logged and reported on by the Reporting Server.

llama-server

The llama-server is part of llama.cpp. The Ax3l project uses a systemd service to run the llama-server. The llama-server hosts the Qwen 3.5 4B model.

Qwen 3.5 4B LLM

The LLM used by the project is Qwen 3.5 - 4B. This is an open source model created by the Alibaba Group out of China.

MCP servers and tools

The MCP tool framework is a feature of llama.cpp and is well supported by the Qwen 3.5 4B model.

  • The MCP tools provide a way for the LLM to communicate its parameter choices to the Ax3l server.
  • The tools use the ZeroMQ messaging framework to deliver the results to the Ax3l server.

MariaDB

  • The MariaDB database stores application data, history, results, and events.
  • It also stores Ax3l’s own execution state, including conversation and workflow progress needed for continuity across interruptions, restarts, and reboots.

Reporting server

  • Reads from MariaDB.
  • Summarizes the current system state, e.g., the number of simulations run.
  • Presents a histogram showing score distribution across simulation runs.
  • Presents a plot of the high score over time, including the dips due to seed rotation events.
  • Presents an event log with filtering.
  • Handles HTTP connections in separate threads with a 30-second client timeout, so idle browser connections cannot block other pages or health checks. Shared background cache scheduling is serialized.
  • Retrieves captured high-score games from Snake Lab over ZMQ and shows animated GIFs in simulation reports and the current experiment panel. Runs without captured frames retain their saved SVG board; control-service transport outages also use that fallback.
  • Schedules missing GIFs in a background worker on first view and reuses files named by run ID, under a directory containing the renderer version and frame duration. The report shows its saved SVG until the GIF is available on a subsequent refresh. No animation metadata is stored in the database.
  • Maintains Ax3l-owned report_runs, report_events, report_turns, and report_state tables. The first background refresh explicitly creates and populates them; later refreshes summarize only previously unseen completed runs and project new experiment events. SnakeLab and original event tables are read only. Games, moves, and all-time high score exclude running, queued, cancelled, and failed runs. Submitted simulations still counts every status.
  • Saves summaries, totals, ordered-round progress, and duplicate suppression in one transaction, serialized by the reporting state row. Source IDs identify records rather than acting as committed-data watermarks: older runs that finish later and late-committing events are revisited. Earlier events cause experiment progress to be reconstructed from the small reporting projection. Completed runs and their episodes are assumed final and immutable.
  • Caches reporting totals in memory. Views schedule a background refresh when the cache is older than 60 seconds, using a separate worker from GIF generation and control-service status. Reports show the last successful totals during refreshes and database outages, or an em dash before the first result. Missing captures and transport failures are retried at most once per minute when viewed. Completed background results appear on the next view or browser refresh.
  • Caches control-service status independently, refreshing stale results on views after 60 seconds, so a control-service timeout cannot hold up reporting counters. Direct HTTP database reads do not initialize tables. The event query limits the latest 500 events before joining their details; operations taking at least one second are logged for diagnosis.

With the installation’s DB_* environment loaded, reporting can also be populated before serving views:

.venv/bin/python -m ax3l.app.ReportingRefresh

The command prints the persisted counters as JSON. It is safe to repeat and uses the same incremental update as the background worker. Use --rebuild to extract everything again after resetting source data or changing the reporting calculation. Rebuild replaces only the four reporting tables’ data, inside a transaction; it does not alter or delete original data. Initial extraction can run while ingestion continues, with subsequent refreshes picking up changes outside the extraction’s transaction snapshot. This does not require another service or changes to SnakeLab. The normal Ax3l credentials already have write access to the Ax3l database and SELECT access to SnakeLab.

GIFs embed the simulation number, captured high score, and current score in a bordered panel using the bundled DejaVu Sans Mono font. The live score updates on food pickup, including during digestion.

GIFs loop forever at 75 ms per move by default, holding the final frame for 1 second before restarting. Each food pickup inserts a stationary sequence at 50 ms per frame: the snake moves onto the food at its previous length and shows the replacement food for one move interval before digestion starts. The new food stays visible while a darker shade of the food colour travels from head to tail. The captured growth appears on the next captured move: the head advances and the visible tail stays in place with its normal body colour. The pickup’s full-length board is skipped so the previous tail square does not flash after digestion. If the game ends before another move, the final board keeps the visible length. These display frames do not alter the captured game data. GIF delays use 10 ms ticks; cumulative rounding alternates 80 and 70 ms move delays to preserve the requested average speed. The reporting entry point accepts --gif-dir (default /opt/prod/ax3l/games) and --gif-duration-ms (at least 10 ms). The reporting service keeps GIFs in /opt/prod/ax3l/games. This directory is writable through systemd’s ReadWritePaths even with ProtectSystem=strict. Removing a cached GIF causes it to be regenerated on the next view. Old Snake Lab runs are not backfilled.

Network bindings are declared in DAx3l.CMDB_NETWORK and overridden in /opt/prod/ax3l/conf/ax3l.json. The configuration interface validates the file once per process through Network. Installation and the network restart helper render all service units from those same values, including the model URL passed to Ax3l and the watchdog. See network configuration.

Watchdog service

  • Checks Ax3l, reporting, and the model selected during service installation every 10 seconds; restarts inactive or failed units through systemd.
  • Restarts the selected model after three consecutive failed /health checks, with a 60-second grace period at watchdog startup and after model restarts.
  • Logs only problems and recovery attempts to the systemd journal; successful polls are silent. Runs as root to manage system services.
  • Does not detect a stalled optimization loop in an otherwise active Ax3l process. Stop the watchdog before intentionally stopping individual services (services.sh stop does this automatically).
  • Reinstall services with -model when changing the model monitored by the watchdog.
